Device Exposure Multiplexing

If the sensors in a dual- or multi-sensor system are mounted such that the camera from one sensor can detect the laser line from the other sensor, the Device Exposure Multiplexing option should be used to eliminate laser interference. This setting creates a time offset for laser exposures and ensures that interfering lasers are not triggered at the same time. Using this setting may reduce the maximum frame rate.

To enable/disable exposure multiplexing:

1. Go to the Manage page and click on the Sensor System category.

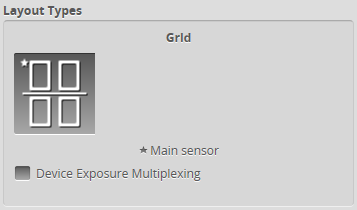

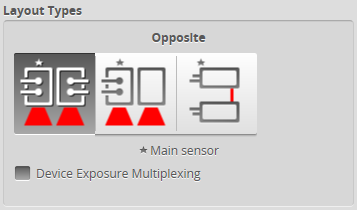

2. In the Layout section, check/uncheck the Device Exposure Multiplexing option. This option is only displayed if a buddy is assigned.

3. (Optional) If the system contains more than two sensors, assign the sensors to different banks.
