Volume

The Volume tool determines the volume, area, and thickness of a part.

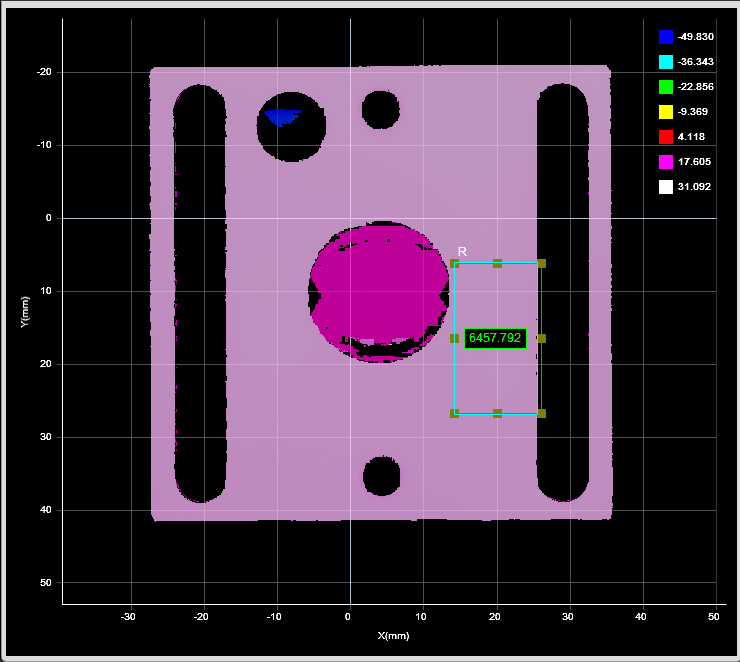

2D View

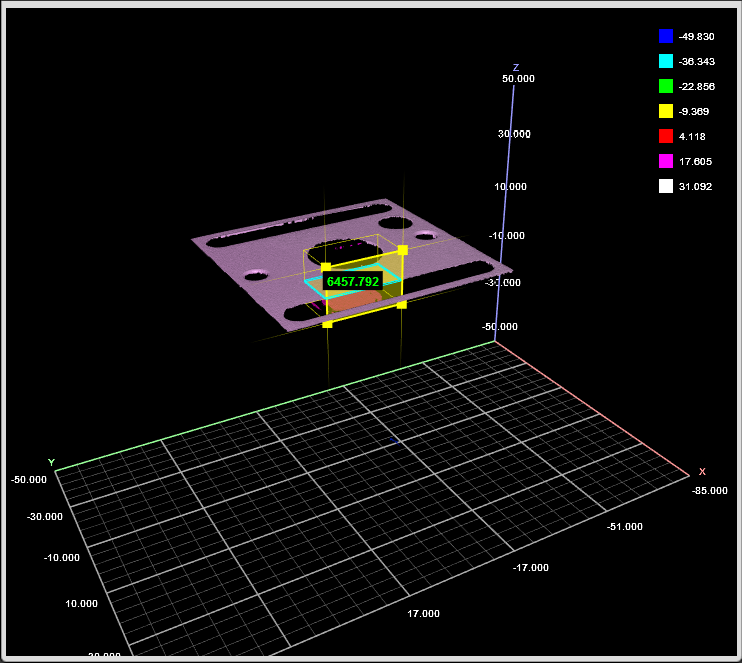

3D View

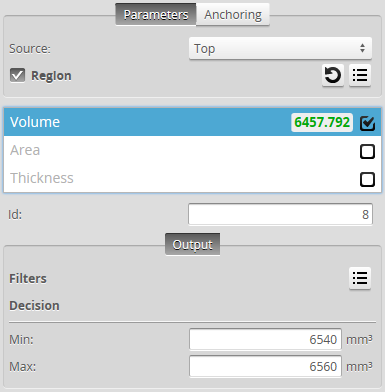

Measurement Panel

For information on adding, managing, and removing tools and measurements, as well as detailed descriptions of settings common to most tools, see Tools Panel.

Measurements
Measurement Illustration

Volume

Measures volume in XYZ space.

Area

Measures area in the XY plane.

The area is the number of valid points multiplied by the X and Y resolution. Note that this is different compared to the area calculations produced by Surface Segmentation and Surface Blob; for more information, see the descriptions of the Area {n} measurements in Segmentation and Blob.

Thickness

Measures thickness (height) of a part.

Parameters
Parameter Description

Source

The sensor, or combination of sensors, that provides data for the tool's measurements. For more information, see Source.

Region

The region to which the tool's measurements will apply. For more information, see Regions.

Location

(Thickness measurement only)

One of the following:

  • Max
  • Min
  • Average
  • Median
  • 2D Centroid (height of the centroid in the XY plane)
  • 3D Centroid (height of the centroid in the XYZ space).

Filters

The filters that are applied to measurement values before they are output. For more information, see Filters.

Decision

The Max and Min settings define the range that determines whether the measurement tool sends a pass or fail decision to the output. For more information, see Decisions.

Anchoring
Anchor Description

X, Y, or Z

Lets you choose the X, Y, or Z measurement of another tool to use as a positional anchor for this tool.

Z angle

Lets you choose the Z Angle measurement of another tool to use as an angle anchor for this tool.

A measurement must be enabled in the other tool for it to be available as an anchor. The anchor measurement should also be properly configured before using it as an anchor.

For more information on anchoring, see Measurement Anchoring.
